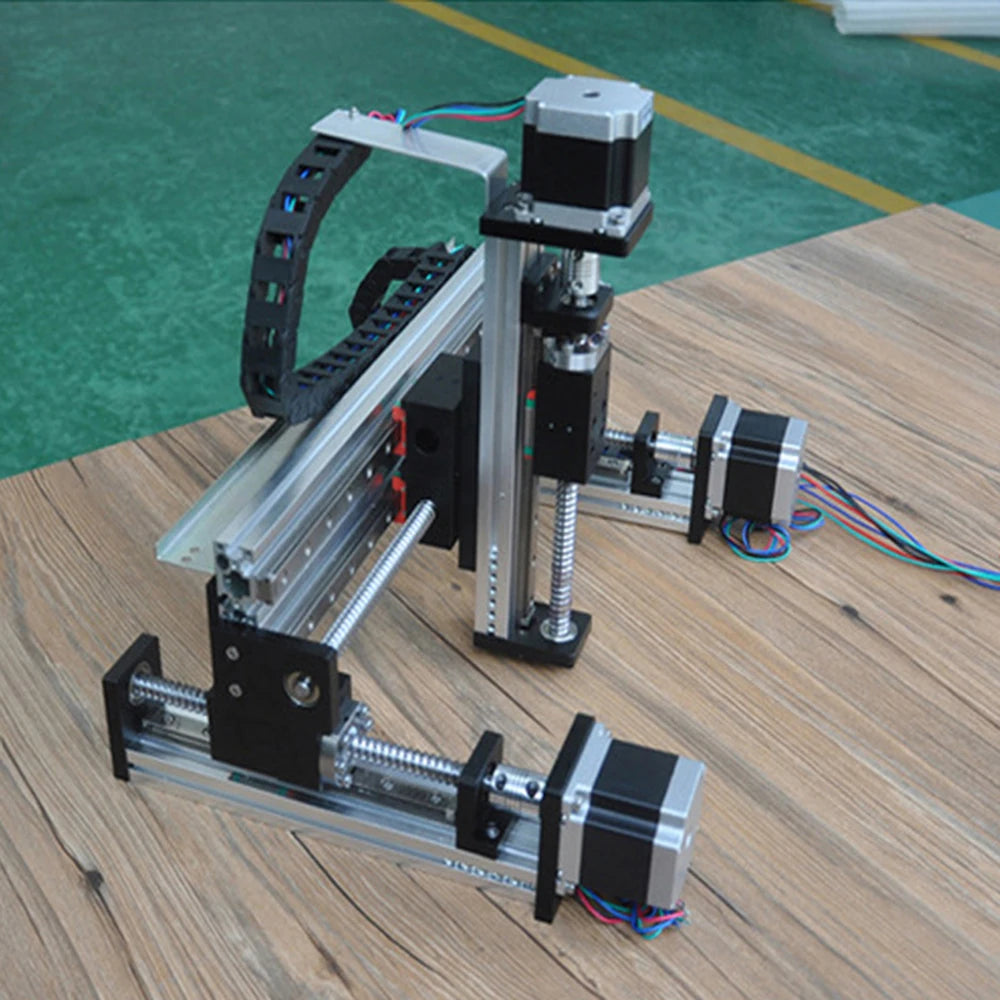

Free shipping factory sale 100x200mm ball screw motorized XY table with stepper motor

Free shipping factory sale 100x200mm ball screw motorized XY table with stepper motor

$ 39,312.00 MXN
$ 0.00 MXN $ 39,312.00 MXN
Sale Sold out
Shipping calculated at checkout.
Ships From
Guide Length
Color

Reaction Force is the key condition for your application, please talk about the design project with our engineer before placing the order, thank you.

















Linear Stage Specifications



SPECIFICATIONS FOR FSK40XYZ-L LINEAR MOTION STAGE


  Mechanical Dimensions

 Stroke length Lx

 mm

 50 -1000

 Stroke length Ly

 mm

 50 -1000

 Stroke length Lz

 mm

 50 -500


Contacu us when need other series and stroke of linear guide rail.Accept 3-axis customization from 50~1000mm stroke


LINEAR STAGE Load/Speed



Highly recommend you to tell us the load and speed you want for the XYZ table before your order, so that our tech could give you our best advice to ensure the performance.Please kindly leave messages to us and we will response asap!


LINEAR Ball Screw Spec.


Model No.

Dia.(mm)

Lead(mm)

Load(KG)

Speed(mm\s)

Accuracy Class

G1610(Default)

16

10

10

0-90

C7

G1605 (Customized)

16

5

Contact us

Contact us

C7

G1616 (Customized)

16

16

Contact us

Contact us

C7

Contact us when you need G1605\G1616 or any other question.


Motor Spec.


Model

Step

Angle

Flange

Size

Body

Length

Torque

Current

Resistance

Inductance

Rotor

Inertia

Lead

(°)

(mm)

L (mm)

( N.m)

(A)

( Ω)

( mH)

(g.cm⊃2;)

(No.)

FM5756SSD04

1.8

57

56

0.93

2.0

1.32

3.19

188

4




Detail Picture


How to order


The XYZ stage comes with CNC accessories,such as drag chain,brackets,connector,nuts..., the driver & controller & power supply are optional.


Assemble tips

Other XY & XYZ Tables we offer

click the above picture to learn more

Buying notes

  • 1,Product sources

        All the products sold in this store are FUYU brand, factory-direct sale, no branch.

  • 2, Model selection

        Before purchasing, please contact us to confirm the model no and specifications to avoid any misunderstanding. Before our production, we will offer drawings for you to confirm.

  • 3,Payment

        Sample fee should be fully paid before production, for bulk order, 50% advance is needed and balance before shippment. Paypal is accepted.

  • 4,Delivery

        Samples in stock will be delivered within 7 days and customized samples will be delivered within 30 days. Delivery date for bulk order depends on order quantity.

  • 5,After-sale service

        Any flaws found by customers within 30 days upon receiving the goods could be changed to new products. Free maintenance within 12 months. Lifetime technical support
